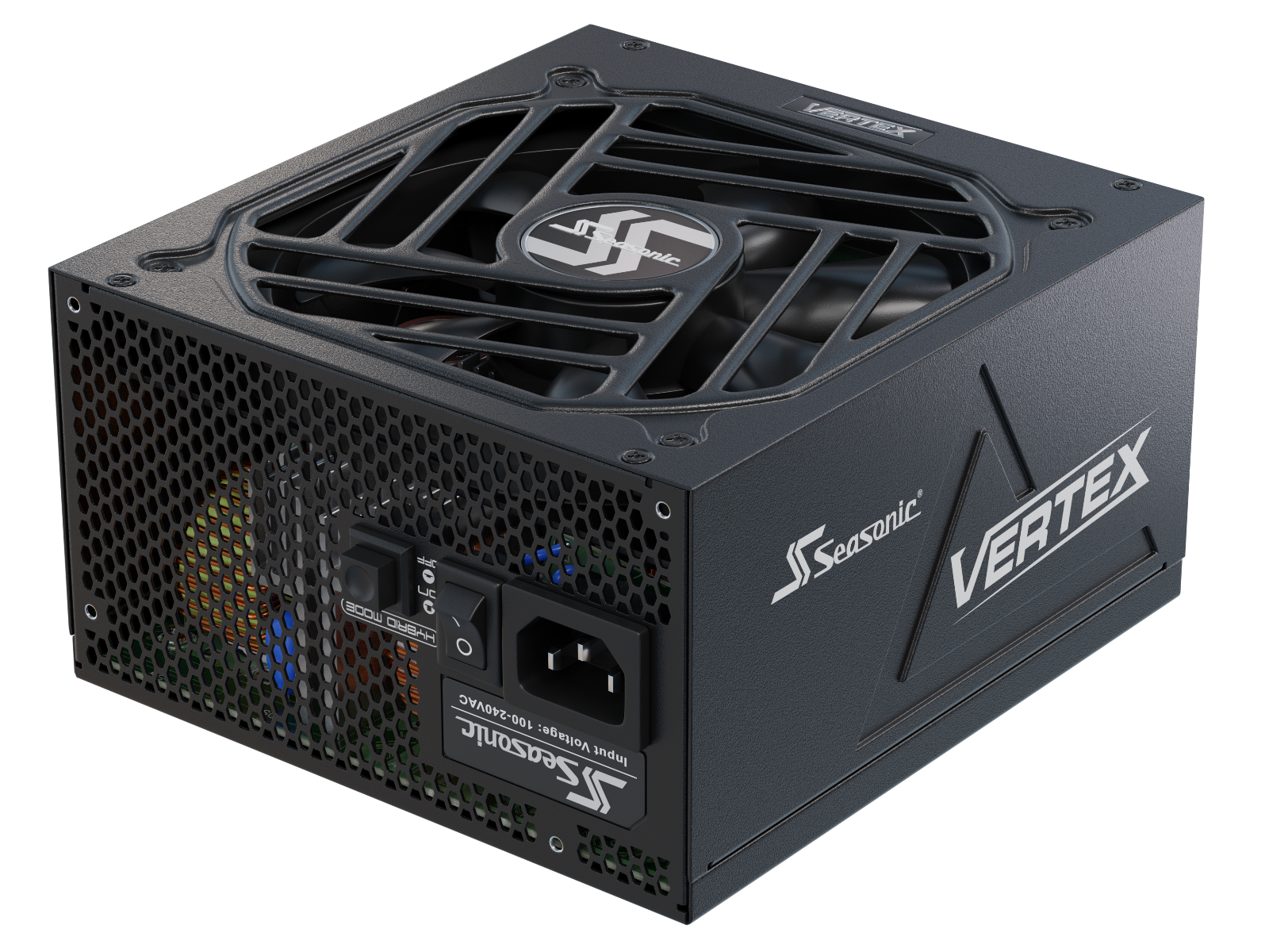

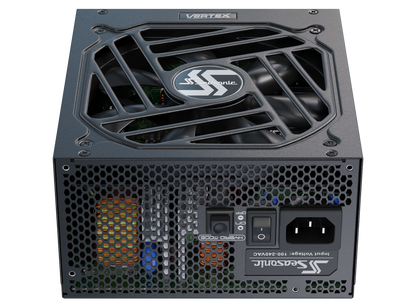

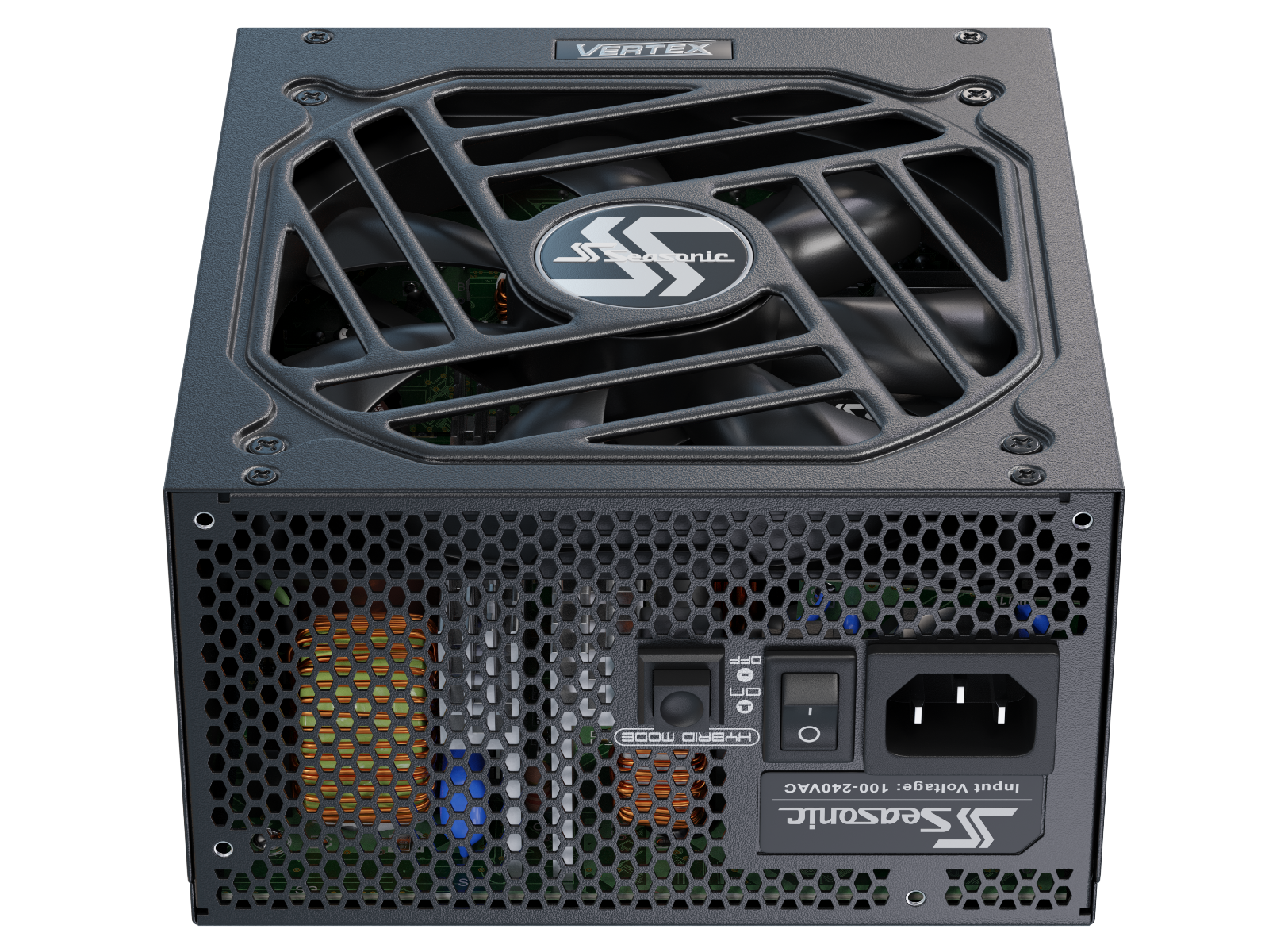

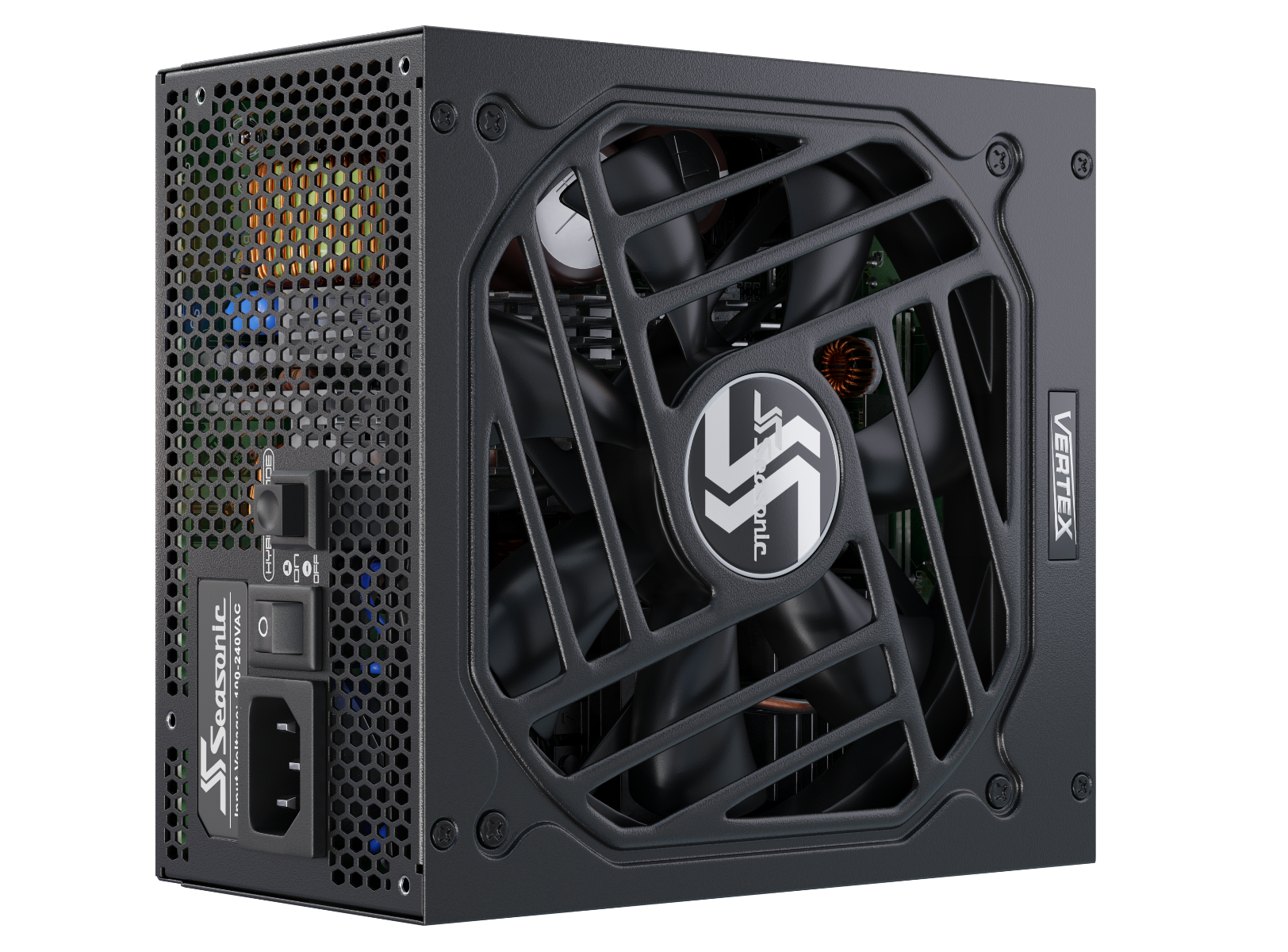

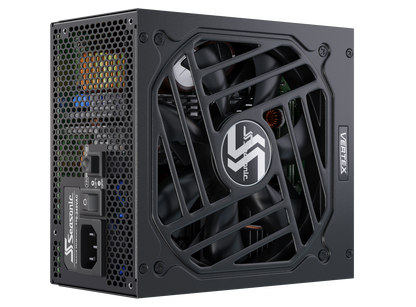

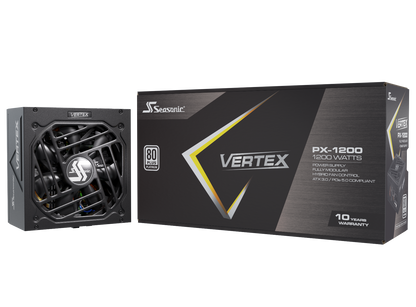

Seasonic VERTEX 1200W (PX-1200) Platinum Fully Modular PSU ATX 3.0

Name: Seasonic VERTEX 1200W (PX-1200) Platinum Fully Modular PSU ATX 3.0
Brand: Grill Masters
SKU: V28-PSUSEAVERPX1200
Price: 659.99 AUD
Availability: OutOfStock

$659.99

~~$791.95~~ $659.99

Sale Sold out

Product variants

FEATURE SUMMARY

Super-High Efficiency, 80 PLUS® Platinum Certified

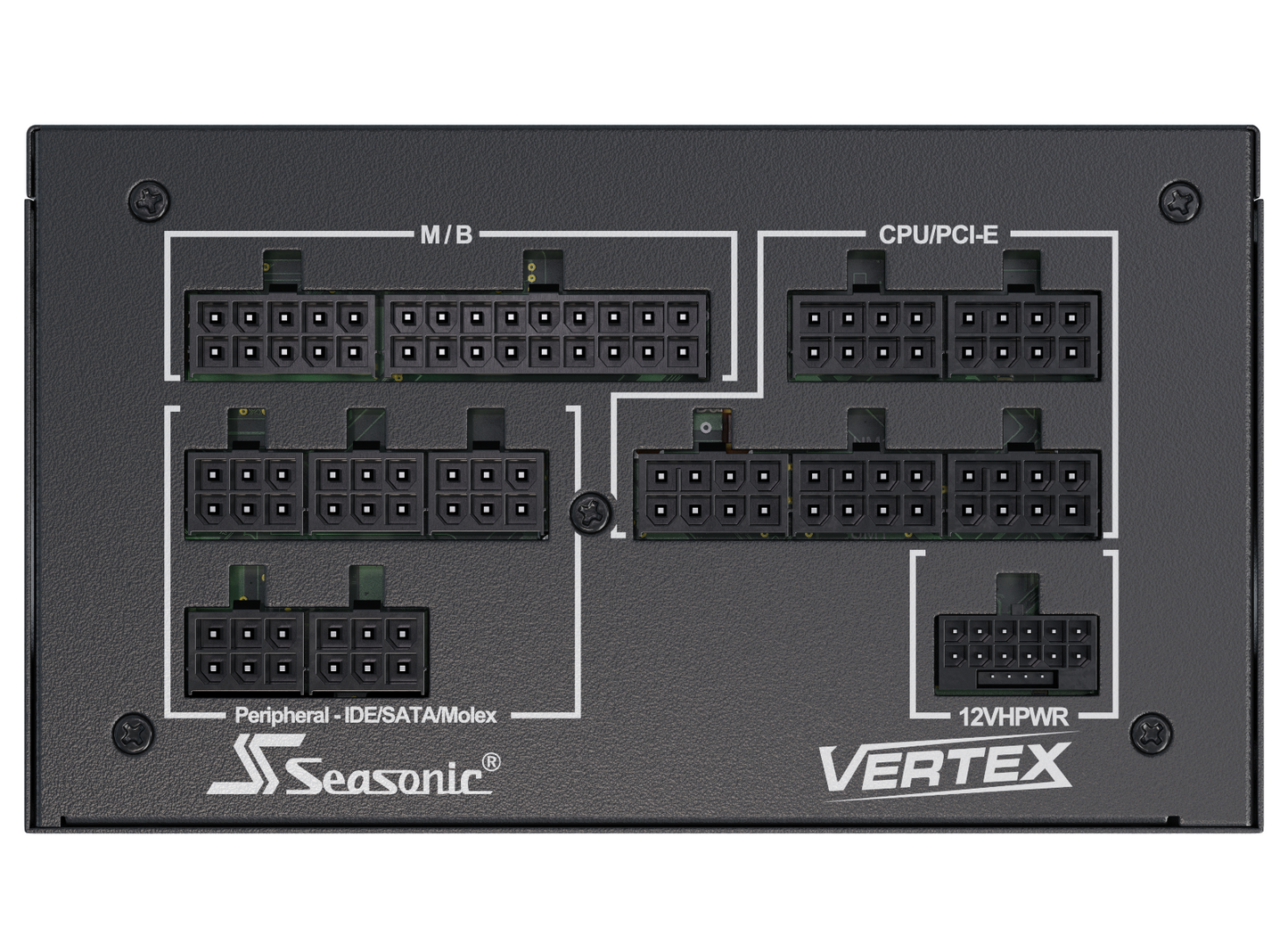

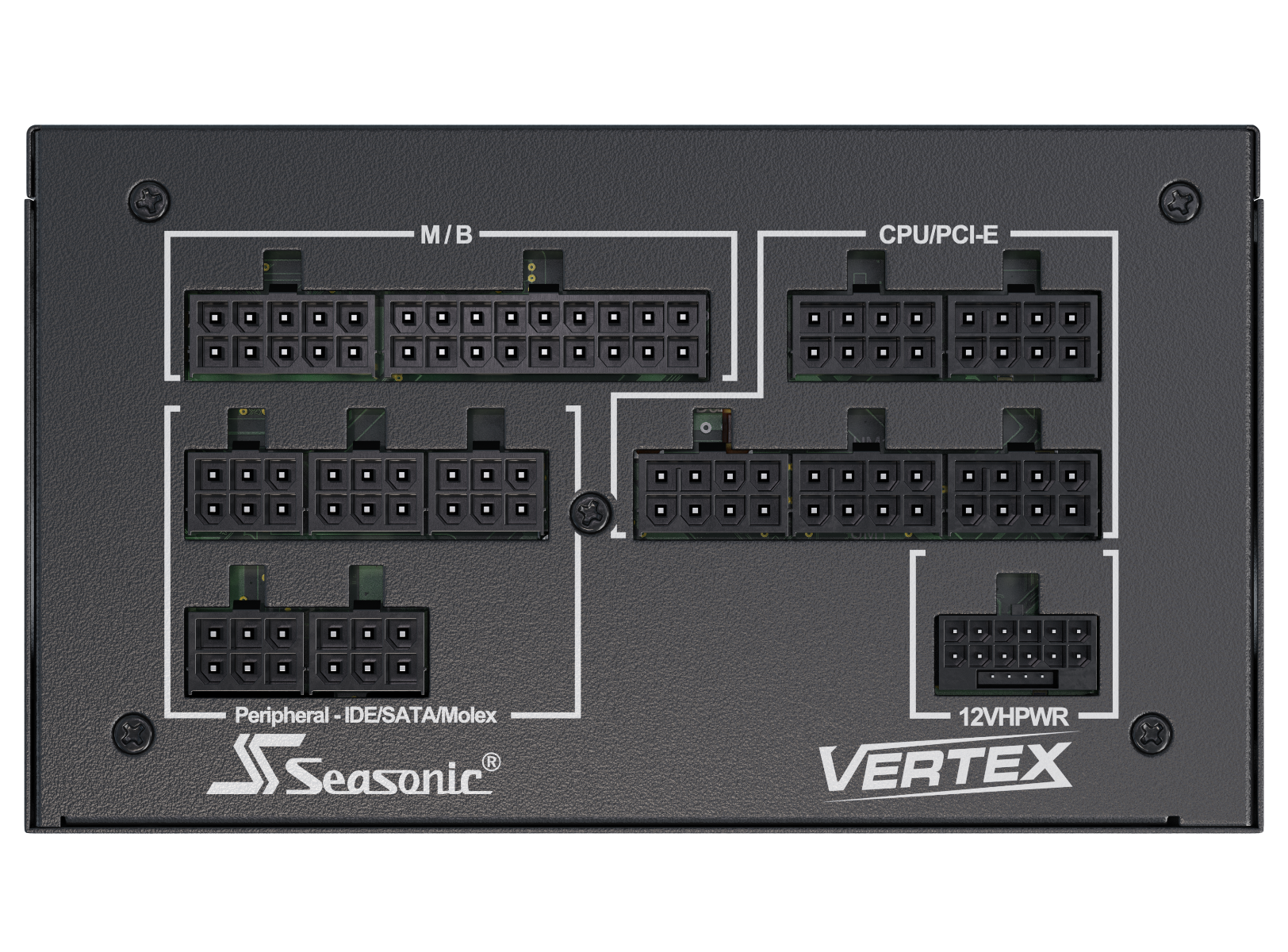

Fully Modular

ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

Top-Quality 135 mm Fluid Dynamic Bearing Fan

Premium Hybrid Fan Control

Tight Voltage Regulation (12V, 5V and 3.3V) [± 3%]

Gold Plated High Current Terminal (MB, CPU and PCIe)

Technical Specifications
80PLUS®		Platinum
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12V
Dimensions		160 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	135 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	150,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 15 - 7.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	100 A	0.3 A	3 A
	Maximum Power	125 W		1200 W	3.6 W	15 W
	Total Continuous Power	1200 W
